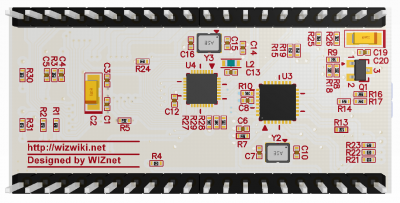

WIZnet WIZwiki-W7500ECO is a WIZwiki platform board based on W7500. The IOP4IoT W7500 chip is one-chip solution which integrates an ARM Cortex-M0, 128KB Flash and hardwired TCP/IP core for various embedded application platform especially internet of things. You can develop prototype product more quickly using WIZwiki-W7500ECO and it includes CMSIS-DAP for debuging and ethernet-phy.

---

Features

WIZnet W7500

• ARM Cortex-M0 Core
• 48MHz, 128KB Flash
• 16KB RAM
• 32KB RAM for TCP/IP - Can be extended to system RAM
• Hardwired TCP/IP Core
• MII Interface
• ADC (8)
• GPIO (53)
• SWD (Serial Wire Debug)
• Timer/PWM
• UART (3)
• SPI (2)

External Ethernet PHY

• IC+ IP101GRI
• Single Port 10/100 MII/RMII/TP/Fiber Fast Ethernet Transceiver
• Auto MDI/MDIX function
• Supports MDC and MDIO to communicate with the MAC

CMSIS-DAP

• LPC11U35FHI33/501, ARM Cortex-M0 Core, NXP
• Drag-n-drop programming
• USB Serial Port
• Easy to use C/C++ SDK

Connector

• Micro USB
• Slim Size RJ45(with transformer)
• GPIO Header

ETC

• Power source - micro USB or external 5V pin
• 1 RESET SW.
• RGB LED for CMSIS-DAP
• 2 Blue LED for USER
• 2 2.54mm 1×20 Externel connector

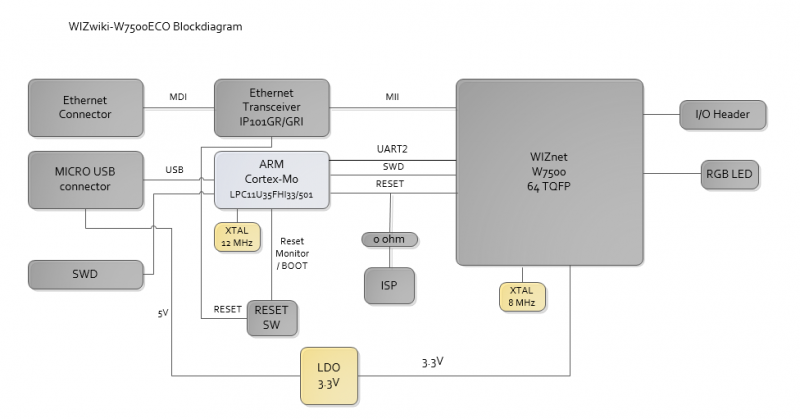

WIZwiki-W7500ECO Blockdiagram

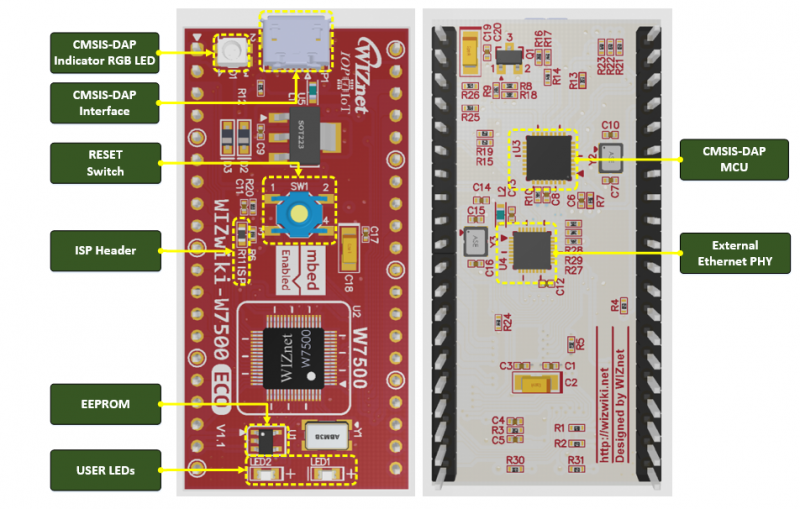

WIZwiki-W7500ECO Callout

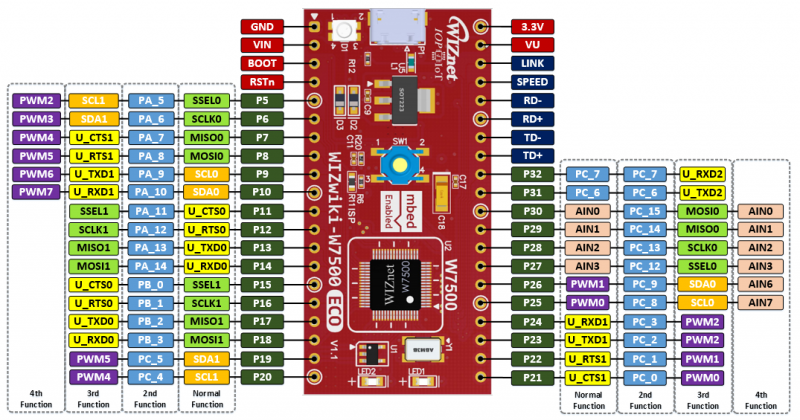

WIZwiki-W7500ECO Detail Pinout

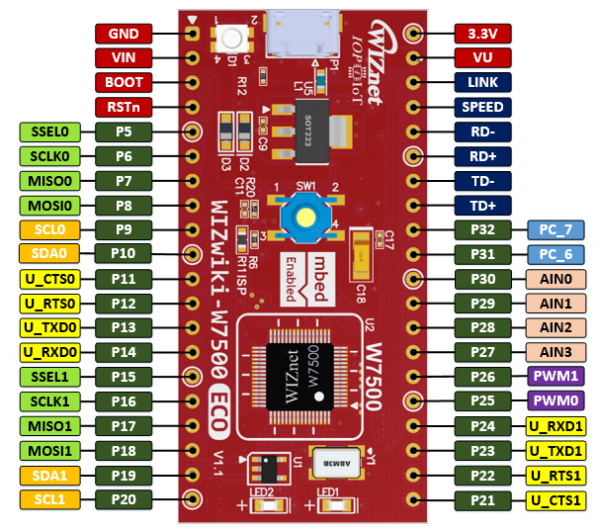

WIZwiki-W7500ECO Simple Pinout

---

Firmware

W7500 Library

• W7500 Library PAGE

---

Getting Started

• How to start WIZwiki-W7500ECO Board
• How to install WIZwiki-W7500ECO serial driver
• How to write the firmware into WIZwiki-W7500ECO
• How to debug Wizwiki-W7500ECO
• How to write the firmware into CMSIS-DAP

---

Make New WIZwiki-W7500ECO Projects

• How to install KEIL uVision5
• How to create KEIL uVision5 new project for W7500
• How to use MDK for W7500 Peripherals Examples
• How to use gcc for W7500 Peripherals Examples

---

Technical Reference

Datasheet

• W7500 Documents
• IP101GRI Datasheet
• LPC11U35FHI33/501 Datasheet

Schematic

• Schematic Version 1.1
• WIZwiki-W7500eco V1.1 Schematic (Altium Designer)
• WIZwiki-W7500eco V1.1 Schematic (PDF)

Part list

• WIZwiki-W7500eco V1.1 BOM (PDF)

Dimension

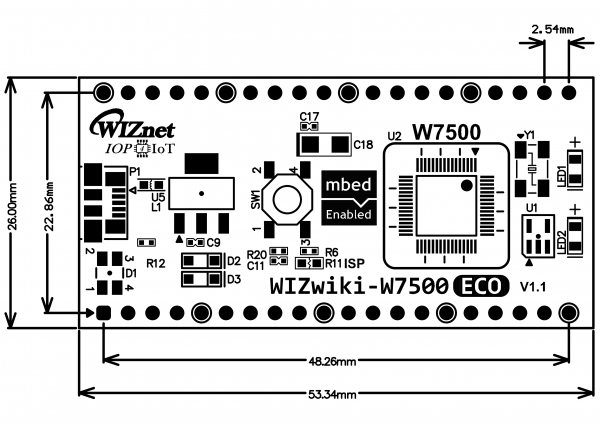

• WIZwiki-W7500ECO V1.1 Dimension

---

Etc.

Serial Port Driver

• ARM mbed Window serial configuration PAGE

W7500 ISP Program

• Go to ISP tool manual & Program download

Examples Binary

• WIZwiki-W7500ECO Examples Binary

---
