Ethernet Shield using w5200

Ethernet Board from PARALLAX (WIZnet Ethernet Board for QuickStart W5200)



The WIZnet W5200 for QuickStart allows your QuickStart board to serve data to an Ethernet network or even the Internet. The WIZnet W5200 chip provides an Ethernet to SPI bridge which is interfaced with Parallax’s 8-core microcontroller, the Propeller P8X32A. The data served to a network can be anything you want – web pages, serial data, email, and more.
Many useful demo programs are available for download from the product page to get you started, including a webserver capable of serving dynamic data from the SD card to your favorite browser. Advanced users can develop firmware that allows the WIZnet W5200 board + QuickStart to respond to or generate any type of network traffic.

2014/04/09 23:34 · Joachim Wuelbeck

---

W5200 Ethernet Module(Gadgeteer Compatible) from DFRobot

This W5200 Ethernet Module is .NET Gadgeteer compatible, which uses the .NET Micro Framework to make writing code for your device as easy as writing a desktop, Web or Windows Phone application.
This module is composed of a fully TCP/IP stack. The Ethernet application can be easily implemented via a simple socket program. SPI is provided for easy connection to the .NET Gadgeteer main board. Compared to the W5100 it doubles the simultaneous socket connections up to 8. The onboard LED indicates the network state between 10Mb and 100Mb.
You can easily let your Gadgeteer online through this module and then your Gadgeteer main board can easily controlled wherever Internet is available. There are massive applications of it ranging from industry to avionics, telecommunication, and multimedia.

---

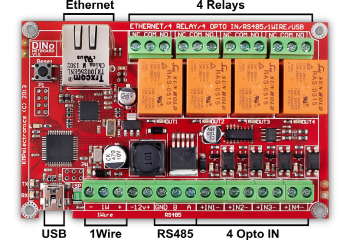

DINo V2 from KMP Electronics

After some time spent on tuning Souliss drivers for WIZnet W5200 Ethernet controller equipped on KMP Electronics DINo v2, we got a full support of new features included in new Alpha 5 with focus on plug&play.
Diving into the examples prepared for DINo you will found no longer need to set Quick Configuration paramters and IP configuration, that's the new inSketch mode included in the last Souliss release. Just load the example on your DINo and connect the boards to the network, they will join and be discovered by your Android smartphone automatically, doesn't matter your IP configuration.

---

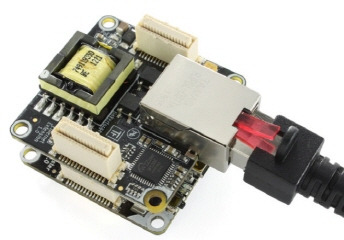

Ethernet Extension from TinkerForge

With this Ethernet Extension you can control Bricks and Bricklets and integrate them into a LAN. 10BaseT/100BaseTX Ethernet is supported and the module is 1000BaseTX compatible. The Extension is available in two variants: The PoE variant features a integrated PoE power supply. It allows to power the connected modules over industry standard IEEE 802.3af, such that a PoE injector as well as PoE switches can be used to power stacks. Additionally a variant without PoE is available.
This module is based on the WIZnet W5200 ethernet chip.
