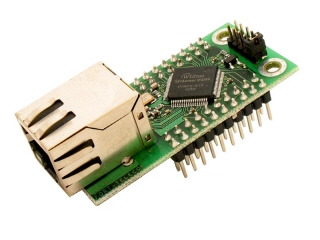

Ethernet Board from PARALLAX (Spinneret Web Server)
The Spinneret Web Server is an Ethernet-based development board for the Propeller microcontroller. Web page content, files, and logs can be stored on a microSD card. The serial EEPROM has 32 KB for storing a Propeller program and 32 KB for non-volatile data storage, independent of the microSD card. There is a real-time clock controller for time stamping files and events and a backup capacitor that will keep the clock running through extended power outages. There is a serial programming header and two auxiliary I/O connections, one for level-shifted open collector communications over a three-pin data/power/ground cable, and the other is a 12-pin socket for direct 3.3 volt I/O connections. There are eight status LEDs on the circuit board, plus two that are repeated on the Ethernet jack. One of the status LEDs is user-controllable and shares a line with a button that can be read under user control. A second button resets the Propeller to reload the firmware from the EEPROM.
Wiznet W5100 ethernet chip offloads TCP/IP stack, using minimal Propeller resources.
Freeduino FT811mj
AndyMark Sasquatch Robot Controller (am-2527)
The Sasquatch Robot Controller is an Arduino Mega variant made by 221 Robotic Systems. This board utilizes the RobotOpen Protocol to stream line information from a computer to the robot and is compatible with existing Arduino Libraries. This is an excellent robot controller, utilizing wi-fi based operation for mobile robots. Users can access any newly expanded I/O using the included libraries.
This board comes bundled with RobotOpen Arduino Library and Driver Station App. These software packages allow you to control the Sasquatch board via USB joysticks and gamepads and establish robust two-way communication. The library includes many examples for common tasks and drive code for tank, mecanum and crab drive bases.
A newly updated Driver Station app is web-based and features graphs, charts and data-logging along with graphical mapping of input devices.
This board is based on is based on the Wiznet W5100 Ethernet chip.
Iboard (IM120410001)
Iboard is a unique Arduino platform which features a Wiznet W5100 Ethernet chip, an XBee socket, nRF24L01+ wireless interface and an ATMega328. This board will add wireless XBee / nRF24L01+ control as well as internet connectivity to your projects. It’s great for anything from home automation to robot control.
Iboard EX (IM120905007)
Iboard EX is a unique Arduino platform which features a Wiznet W5100 Ethernet chip, an XBee socket, nRF24L01+ wireless interface and an ATMega32U4. This board will add wireless XBee / nRF24L01+ control as well as internet connectivity to your projects. It’s great for anything from home automation to robot control.
Iboard Pro (IM120724002)
Iboard Pro is a unique Arduino board which features a Wiznet W5100 Ethernet chip with POE, an XBee socket, ITDB02 Serial/Parallel LCD module interface, RTC, nRF24L01+ module interface, Micro SD socket and an ATMega2560. This board will add wireless XBee control as well as internet connectivity to your projects. It’s great for anything from home automation to robot control. The possibilities are endless!
SainSmart W5100 Network Module
This Module Support full hardware TCP / IP protocol: TCP, UDP, ICMP, IPv4 ARP, IGMP, PPPoE, Ethernet. Embedded 10BaseT/100BaseTX Ethernet physical layer. Support auto answer (half / full duplex mode). Support automatic MDI / MDIX. Support ADSL connection (PPPoE protocol support with PAP / CHAP authentication). Supports up to four independent ports. The internal memory of 16K bytes for TX / RX cache. 3.3V operating voltage, I / O port can withstand 5V voltage.
This module is based on the WIZnet W5100 ethernet chip.
